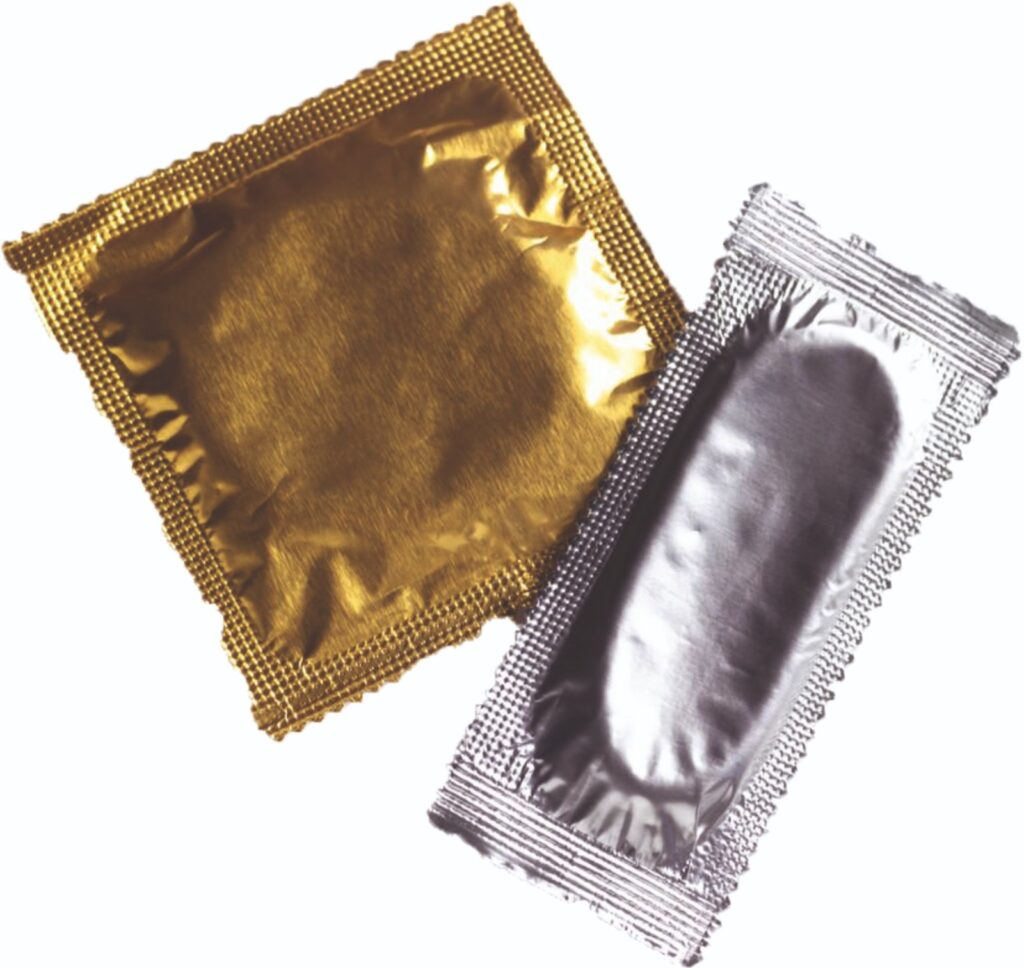

Wahren Sachet
Manufactured by Wahren Pharmaceutical Sachets are used for all types of dry products and diet supplements., a three-ply laminated sachet foil consisting of polyester, Aluminium Foil & LDPE film having barrier properties against water vapor, gases, light etc. with high malleability for pouches. All raw material used in manufacturing pharmaceutical sachet laminate produce by WAHREN are food grade. The product is registered with USFDA active DMF having registration no. 038740, Canadian DMF No. e278261, China DMF No. B20240000073
Applications
Film is specifically designed for blister packaging, used to individually package tablets, capsules,
and other small items. The film is thermoformed to create pockets (blisters) to hold the product,
and then sealed with a lidding material.
Specification
- 12 Mic CC Pet/17 Gsm White PE/09 Mic soft foil / 35 Gsm PE
- 23 Mic CT Pet / 16 Gsm White PE/ 20 Mic soft foil / 35 Gsm PE
- 12 Mic CC Pet/17 Gsm PE / 12 Mic soft foil / 20 Gsm PE / 30 Mic LDPE Film
- 23 Mic Pet / 20 Mic Alu Foil / 36 Mic Extruded PE
- 18 BOPP / 12 Mic MET PET / 90 LDPE NAT
Technical Specification
| Test Parameters | Units | Standard Specification |
|---|---|---|
| Product Name | — | Pharmaceutical Sachet (PET 12µ / Al. Foil 9µ / LDPE 60µ) |
| Width | MM | ± 1 mm |
| PET Layer (GSM) | gm/m² | 16.8 – 19.6 |
| PET Layer Thickness | Micron | 12.0 – 14.0 |
| Adhesive (GSM) | gm/m² | 1.5 – 2.0 |
| Aluminium Foil (GSM) | gm/m² | 24.3 – 32.4 |
| Aluminium Layer Thickness | Micron | 9.0 – 12.0 |
| Adhesive (GSM) | gm/m² | 1.5 – 2.0 |
| LDPE Film (GSM) | gm/m² | 55.2 – 59.2 |
| LDPE Layer Thickness | Micron | 60.0 – 65.0 |
| Total GSM | gm/m² | 99.3 – 115.8 |
| Total Thickness | Micron | 81.0 – 91.0 |
| OTR | cc/m²/day | ≤ 0.005 |
| WVTR / MVTR | gm/m²/day | ≤ 0.005 |
| Residual Solvent (GC) | mg/m² | 0.1 |
| Pin Hole | No./SQM | NIL |
| Toxicity | — | Non-Toxic |
| Bonding Strength (OPA/ALU) | N/15 MM | ≥ 2.00 N / 15MM |
| Bonding Strength (ALU/PVC) | N/15 MM | ≥ 2.00 N / 15MM |
| Ink Adhesion | Visual | Should pass cello tape test |
| No. of Joints | No. | Max 2 Per roll |
| Core ID | MM | 76 ± 1 mm |
| Packing | — | Roll wrapped in stretch film with core insert with core plug & bubble film wrapped with edge guard, then packed in corrugated boxes with BOPP tape/Nylon strap with label pasted on the box |
