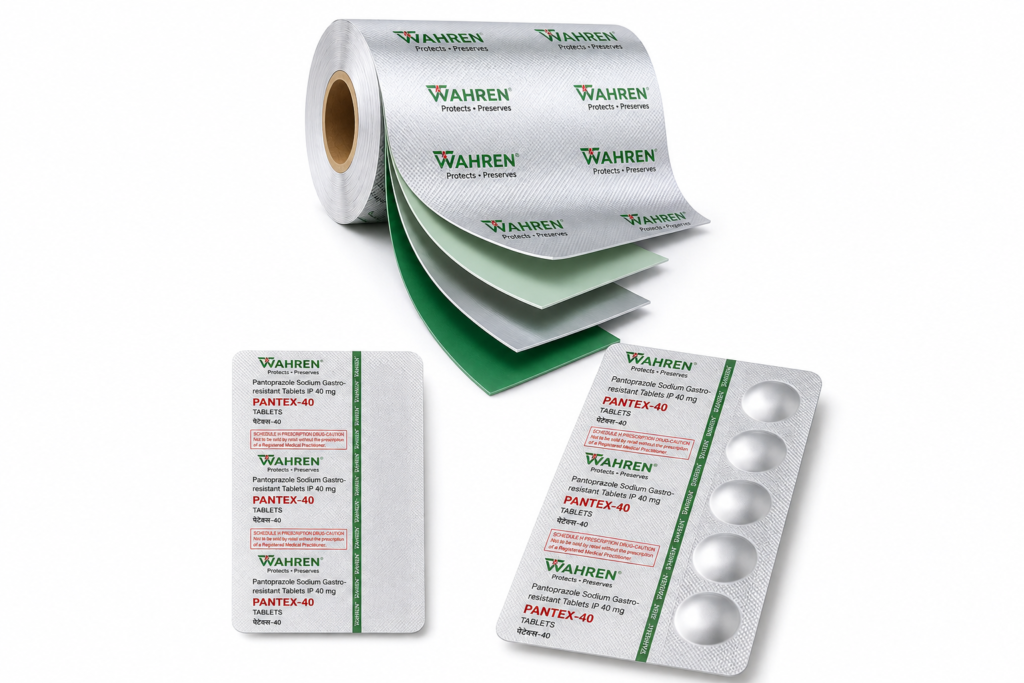

Wahren Printed Blister Foils
Aluminium blister (Push Through) lidding foils NC/NC Free are heat-sealable foil laminates used to seal blister packs (PVC / PVDC / PP / Alu-Alu).
When printed, they serve a dual purpose:
- Barrier Protection (moisture, oxygen, light)
- Information + Branding Surface (critical for pharma compliance)
Specification
Printed lidding foils are multi-layer engineered laminates, typically:
Outer Layer (Print Side)
- Rotogravure / Flexo, printing ensures clear, high-quality printing
for product information, branding - Batch number / MFG / EXP
- Regulatory text (Schedule H, warnings)
- QR codes / barcodes
- Anti-counterfeit features
- Protected by primer / overcoat
Core Layer
- Aluminium foil (20–25 microns typical)
- Provides high barrier against moisture, light, oxygen, and contamination.
Inner Layer (Sealant)
- Heat Seal Lacquer (HSL)
- Compatible with:
- PVC
- PVC/PVDC
- PP
- PET
Technical Specification
| Sr. No. | Test Parameters | Unit | Standard Specification |
|---|---|---|---|
| 1 | Aluminium Foil Thickness | Micron | 20 ± 10% |
| 2 | Aluminium Foil GSM | g/m² | 54 – 60 |
| 3 | Heat Seal Coating | g/m² | 5 – 8 |
| 4 | Primer Coating | g/m² | As required |
| 5 | Printing | — | Multicolor Rotogravure Printing |
| 6 | Seal Strength with PVC / PVDC | N / 15 mm | ≥ 6 |
| 7 | Pin Holes | No./m² | NIL |
| 8 | Barrier Properties | — | Excellent Moisture & Oxygen Barrier |
| 9 | Ink Adhesion | — | Should Pass Tape Test |
| 10 | Residual Solvent | mg/m² | As per pharmaceutical standards |
| 11 | Reel Width | mm | As per customer requirement |
| 12 | Core ID | mm | 76 ± 1 mm |
