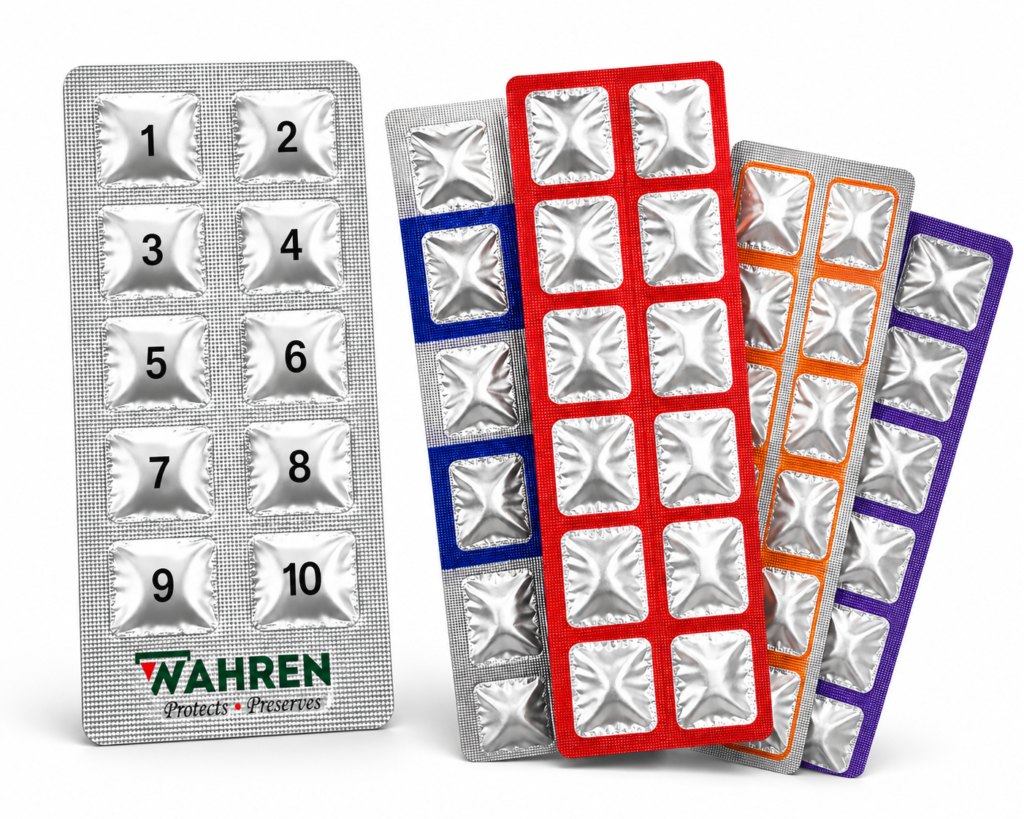

Wahren Strip Foils
Classic High Barrier flexible laminates
Versatile popular and efficient packaging known to accommodate different shapes and sizes of Solid Oral Unit doses. Economical choice for high volumes, suitable for High speed Packaging
Two webs of laminate heat-sealed around individual tablets or capsules in a continuous flat strip hermetically sealed, Every dose in the strip is designed to provide patients the ease of tearing a single individual pocket.
Strip packaging offers numerous benefits, ensures enhanced product protection, improved patient compliance, and extended shelf life.
ECO Friendly, Superior Barrier Protection and Tamper Evident
Applications
Structures
- ALU + PE
- PAPER + PE
- PET + ALU + PE
- PAPER + ALU + PE
- GLASSINE + ALU + PE
Applications
Tablets, Capsules, Lozenges, Suppositories, Pessaries, Nutraceutical supplements, Minerals, Vitamins, Herbal pills, Probiotics, and Chemical tablets like Mosquito repellent, Camphor, Naphthalene balls, Vet Tablets, Candy lozenges, Chocolates,
| Test Parameters | Units | Standard Specification |
|---|---|---|
| Product Name | — | Pharmaceutical Sachet (PET 12µ / Al. Foil 9µ / LDPE 60µ) |
| Width | MM | ± 1 mm |
| PET Layer (GSM) | gm/m² | 16.8 – 19.6 |
| PET Layer Thickness | Micron | 12.0 – 14.0 |
| Adhesive (GSM) | gm/m² | 1.5 – 2.0 |
| Aluminium Foil (GSM) | gm/m² | 24.3 – 32.4 |
| Aluminium Layer Thickness | Micron | 9.0 – 12.0 |
| Adhesive (GSM) | gm/m² | 1.5 – 2.0 |
| LDPE Film (GSM) | gm/m² | 55.2 – 59.2 |
| LDPE Layer Thickness | Micron | 60.0 – 65.0 |
| Total GSM | gm/m² | 99.3 – 115.8 |
| Total Thickness | Micron | 81.0 – 91.0 |
| OTR | cc/m²/day | ≤ 0.005 |
| WVTR / MVTR | gm/m²/day | ≤ 0.005 |
| Residual Solvent (GC) | mg/m² | 0.1 |
| Pin Hole | No./SQM | NIL |
| Toxicity | — | Non-Toxic |
| Bonding Strength (OPA/ALU) | N/15 MM | ≥ 2.00 N / 15MM |
| Bonding Strength (ALU/PVC) | N/15 MM | ≥ 2.00 N / 15MM |
| Ink Adhesion | Visual | Should pass cello tape test |
| No. of Joints | No. | Max 2 Per roll |
| Core ID | MM | 76 ± 1 mm |
| Packing | — | Roll wrapped in stretch film with core insert with core plug & bubble film wrapped with edge guard, then packed in corrugated boxes with BOPP tape/Nylon strap with label pasted on the box |
